Tonewinner AD-7300PA+ 7ch power amplifier
The AD-7300PA+ is a 7-channel Hi-Fi amplifier that is specially designed to match the AD-7300HD processor. It is a high-end and high-power amplifier with multi-protection, including overheat, overload, overcurrent, and overvoltage protection, so as to offer reliable performance for a home theatre system.
Key Features
- 7 channels equal power output
- 7x 310W Power
- Hi-Fi Circuit Design
- High end gold plated RCA & XLR Connections
- Five protection design
Big power tube parallel output, can supply 45A current output, big output power margin.
CHANNELS
- 324 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
- 584 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
- 307 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
- 500 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
- 200+ watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels driven.
FIVE CIRCUIT PROTECTIONS
- Overload Protection
- Overheat Protection
- Overvoltage Protection
- Overcurrent Protection
- Short-circuit Protection
5V TRIGGER
Support for 5 Volts trigger in to achieve smart synchronous control with other devices.

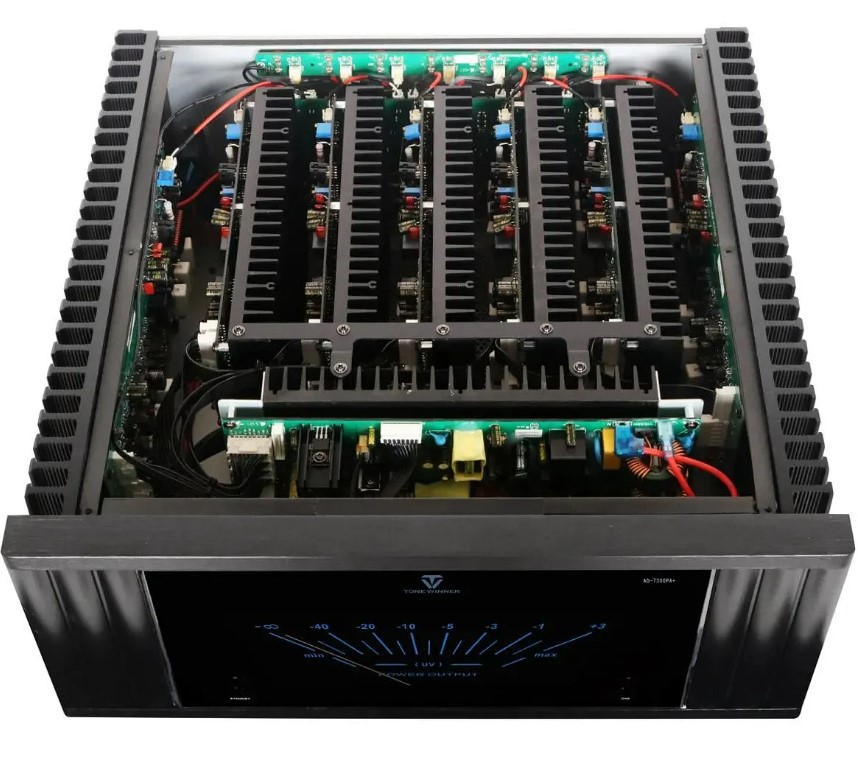

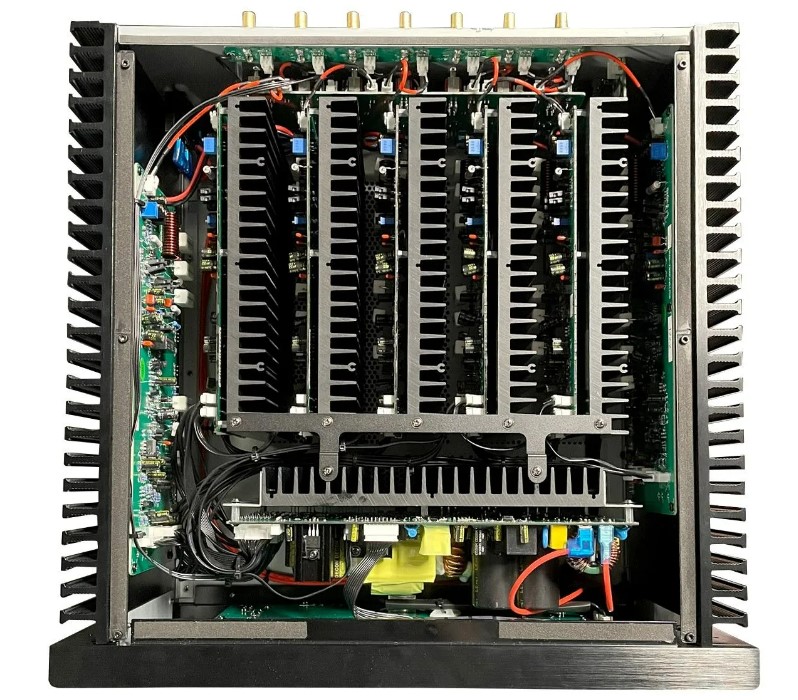

7 CH Independent Amp Circuits
It adopts independent Hi-Fi circuit modules for all 7 channels, which works with high power transistors to offer 45A current output.

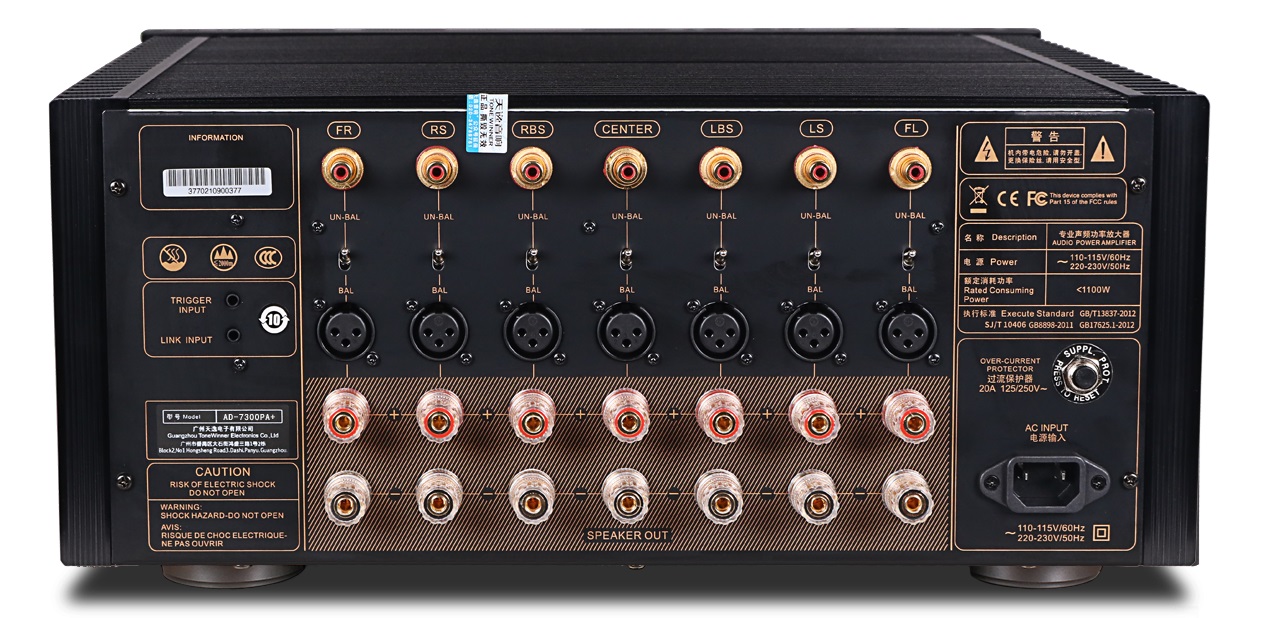

Balance/Unbalance Input
It supports both RCA and XLR inputs to connect to more devices for different entertainment including movies, music, singing and gaming.
DELIVERY AROUND 2 WEEKS. CONTACT US FOR MORE INFORMATION.
