miniDSP AMP-8

Original price was: £2,499.00.Current price is: £2,249.00.

Add to Wishlist
Add to Wishlist
Category: Brand:

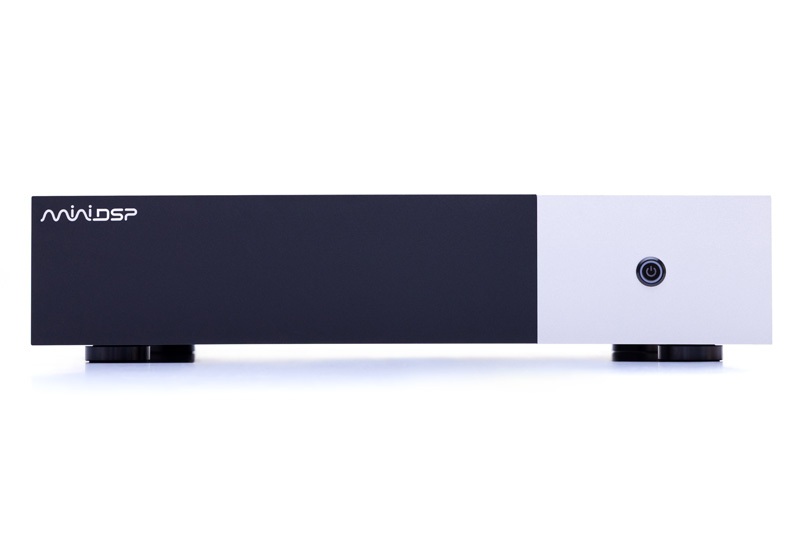

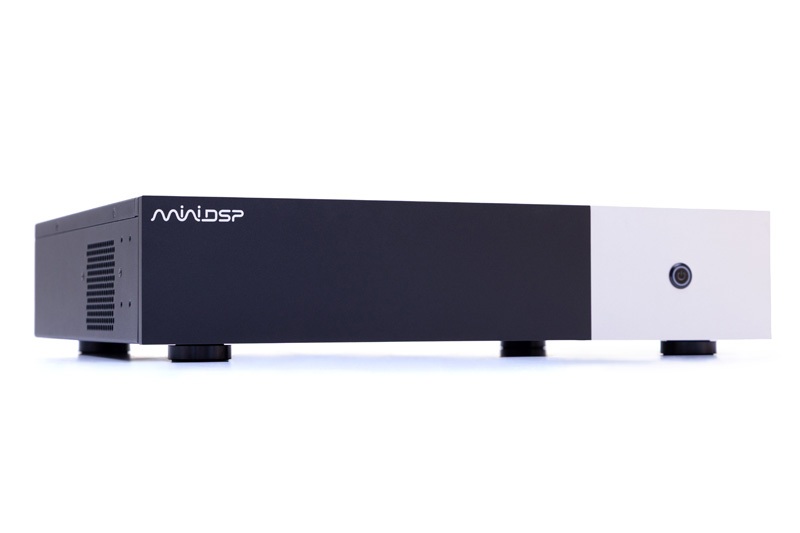

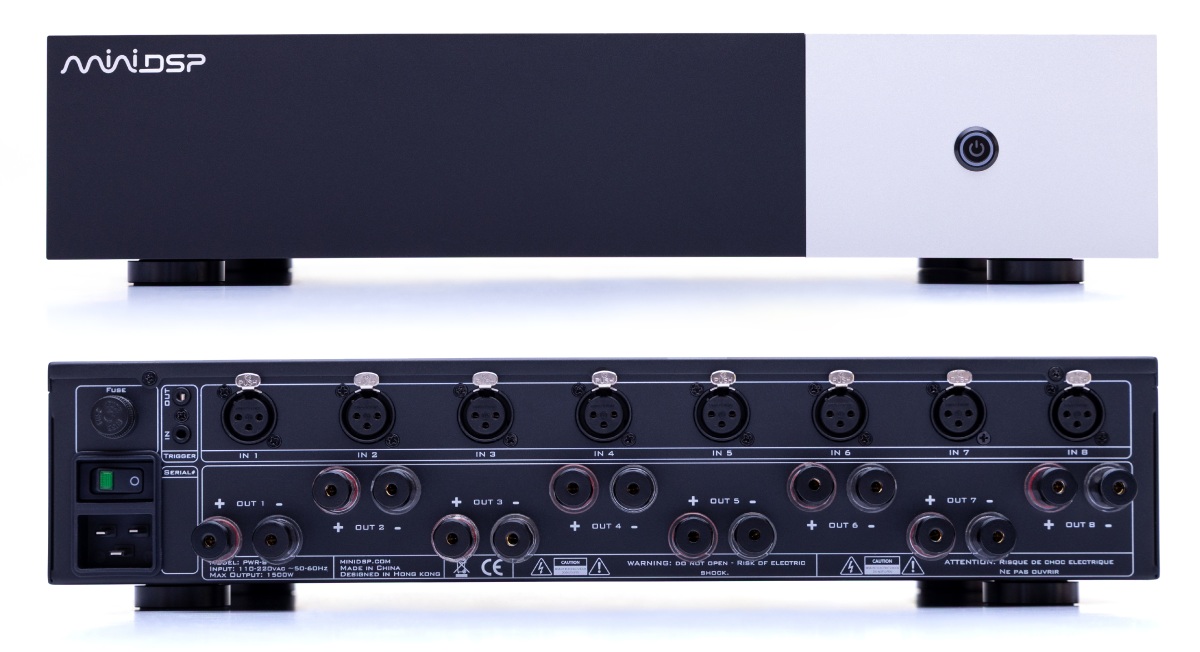

miniDSP AMP-8

The miniDSP AMP-8 is an 8-channel power amplifier designed for home theater, immersive audio, and multizone setups. It stands out due to its remarkable power-to-size ratio and high efficiency.

Utilizing ICEpower® amplifier modules, the AMP-8 delivers 300 Watts per channel at 4 ohms. This ultra-quiet amplifier boasts a Signal to Noise Ratio (SNR) of 123dB and a SINAD of 102dB. Its amplifier modules are powered by an efficient ICEPower switch-mode power supply that provides 1500W of continuous output and peaks at 2400W. The result is a compact amplifier that delivers powerful performance without compromise.

Equipped with a comprehensive array of protection features, this amplifier is both versatile and durable. With its substantial power output, high efficiency, and audiophile-grade sound quality, the miniDSP AMP-8 is well-suited for a variety of home, studio, and commercial applications.

Hardware Features

  • IcePower Class D 300A2 modules
  • 300W/ch at 4Ohms
  • Ultra quiet performance, 123dB Signal to Noise Ratio (SNR)
  • 102dB SINAD for low distortion
  • 12V trigger in/out

What’s in the box?

  • AMP8 amplifier
  • Rack mount ears
  • UK/EU/US/AU plug based on shipment
  • Removeable Rack EARS (1RU)

Delivery & Availability

  • IN STOCK IN UK
  • UK Delivery via DPD/DHL depending on location.

Technical Specifications

Power amplifier modules

4 x IcePower 300A2 modules + 1 x IcePower 1500S power supply

Power rating

300 Wrms per channel @ 1 % THD+N, 20 Hz – 20 kHz, 4Ohms
150 Wrms per channel @ 1 % THD+N, 20 Hz – 20 kHz, 8Ohms
Peak power power supply: 2400W

Analog Audio Input Connectivity

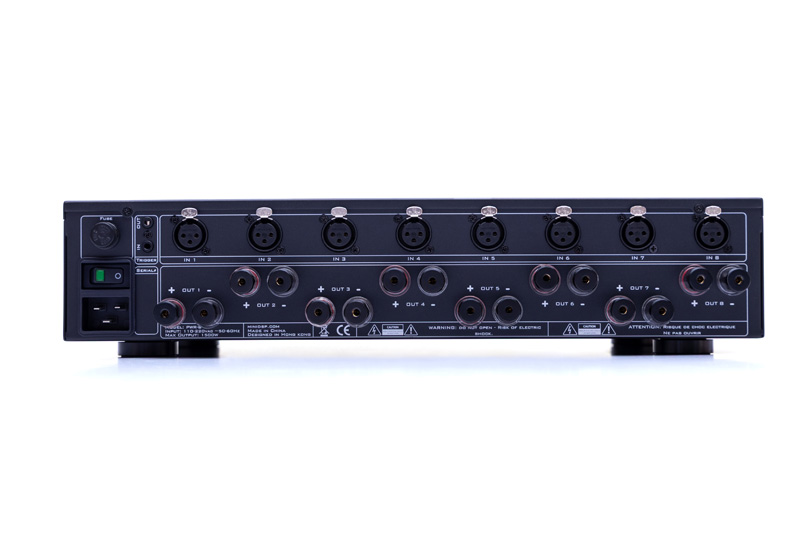

8 x balanced XLR input

Analog Audio Input Impedance

38 kΩ

Input Sensitivity

2 V RMS

Frequency Response

20 Hz – 20 kHz ± 0.5 dB

SNR (Signal to Noise Ratio)

123 dB(A)

THD+N

THD+N = 0.0008 % @ 10 W (4 Ω, 100 Hz) SE / SINAD 102dB

Dimensions

442x336x90 mm, removable feets

Firmware update

USB port for firmware upgrade

Power Supply Module

Universal Power supply, 1500W rated, 2400W peak, Universal supply (85~264Vac)

IEC C19 plug

Trigger

12V trigger in, 12V trigger out controls external ON/OFF powering of amplifiers
