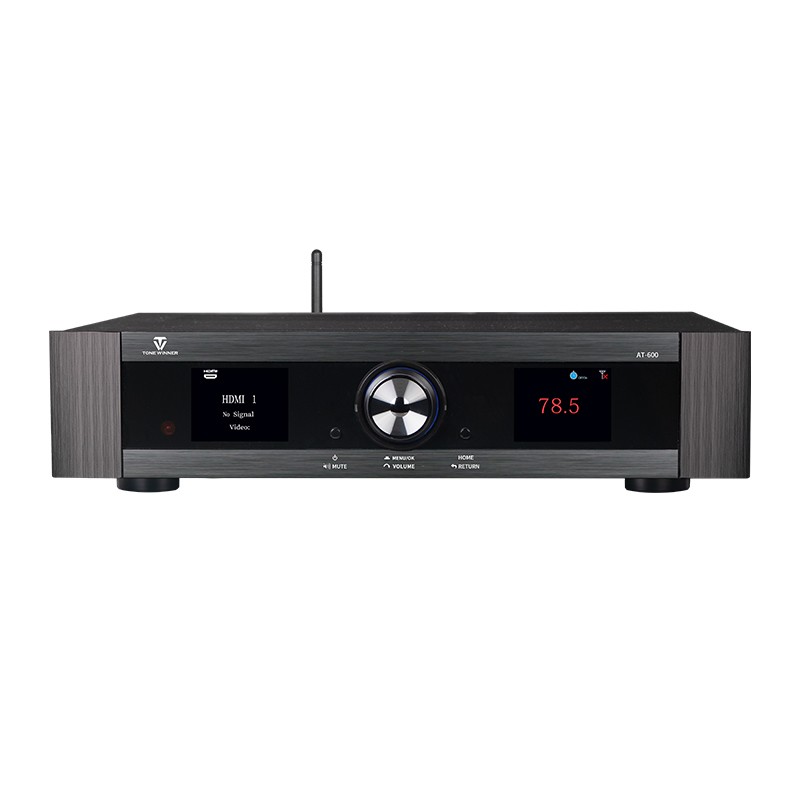

Front of AT600
Tonewinner AT-600 8K Processor with Dirac - Image 2
Tonewinner AT-600 8K Processor with Dirac - Image 3

Tonewinner AT-600 8K Processor with Dirac

Price range: £1,999.00 through £3,249.00

Add to Wishlist
Add to Wishlist
🔄 TRADE & SAVE 🤝 PRICE MATCH BEAT
SKU: N/A Category: Tags: , , , , Brand:

Tonewinner AT-600 8K immersive Processor with Dirac

The Tonewinner AT600 is an 8K immersive AV processor which is developed for high-end cinemas. It supports Dolby Atmos, DTS:X and full Dirac Live technologies including Room Correction, Bass Control and ART.

Stock update: Limited Stock due Monday 19th October 2026

Use coupon code AT600 at checkout for an introductory discount for a limited time.

Please note that all Dirac licenses are included in the purchase price (Including ART). ART is to be activated via a firmware update, at a later date. Please sign up on the Dirac webpage to be notified when ART is available. Dirac Room Correction and Bass Control is available from launch.
Main Features

1. Support Dolby Atmos, Dolby True HD and all backward Dolby audio formats.

2. Support DTS:X,DTS-Master and all backward DTS audio formats.

3. Support Dirac Live Room Correction, Dirac Live Bass Control and Dirac Live ART.

4. Powered by the ES9081 chip from ESS for pure, high-resolution audio.

5. Support HDMI2.1, HDCP2.3.

6. Support 8K, YUV4:4:4, 40GHz bandwidth HD video signal.

7. Support Dolby Vision, HLG, HDR10, HDR10+ video signal.

8. Full balance 7.1.6/9.1.4 and unbalance output7.3.6/9.3.4 Dolby Atmos signal output.

9. One-button simple operation for EQ room calibration and compensations of speaker distance, delay and sound pressure, automatic calibration and supports user manual adjustment.

10. Built-in music playing device; support multi-level folder arrangement of music files from TF card and USB disk; support lossless and compressed audio formats including FLAC, APE WAV, MP3, etc.

11. Built-in digital Bluetooth audio receiver.

12. Support App control, infrared remote and Bluetooth remote control.

13. Dual 2.8″display screens, all kinds of information is at a glance.

14. Chinese/English overlay OSD menu.

15. Synchro-reading and display of music lists on mobile phone and TV.

16. Support speaker configurations from 2.0 to 7.3.6/ 9.3.4.

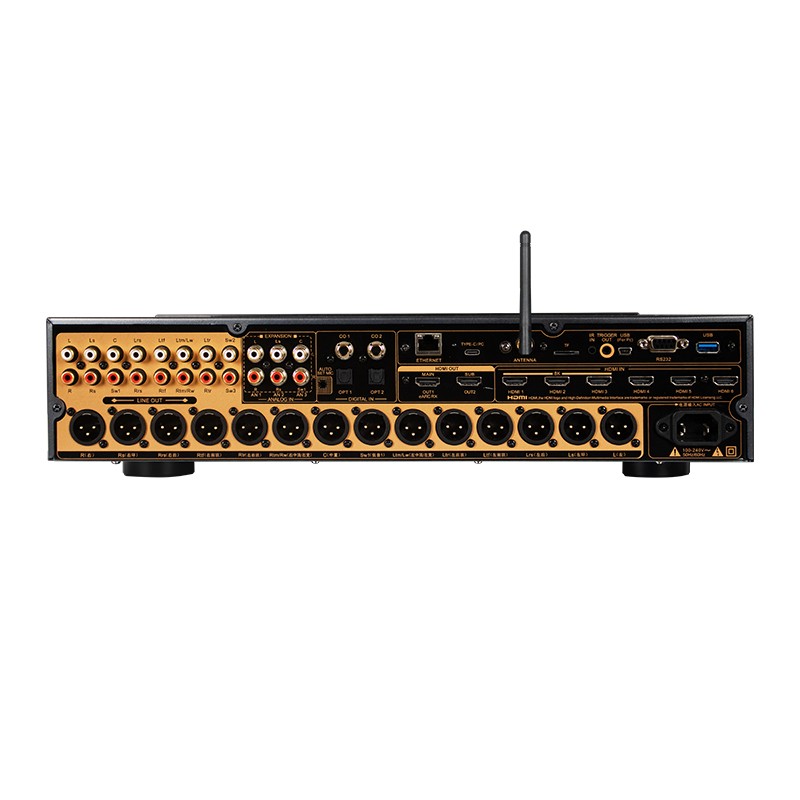

17. HDMI 6 in 2 out(HDMI1, HDMI2, HDMl3 support 8K), 2 ways of coaxial, 2 ways of optical and 3 ways of analog inputs.

18. Support 5.1 channel external mixing input, can connect external reverberator.

19. Support RS232 protocol.

20. Support HDMl eARC and CEC

21. Maximum 1000ms lip-sync adjustment.

22. 5 to 11 band parameters EQ for each channel

23. Support audio-video matrix subgroup output.

24. New dual-core DSP chip from ADl company.

25. Independent settings and parameter storage for each input channel.

26. Independent EQ selection and volume control for each input channel.

Additional information

Power Amp

No Thank You, AD8300PA + XLRs

Technical Specifications



Model
AT-600
THD
≤0.004%(A-weighted, pure mode, 1kHz, analog in)
Channel

Full balance 7.1.6/9.1.4; unbalance output7.3.6/9.3.4

SNR
≥110dB (A-weighted,1KHz/1Vrms, analog in, pure mode)
Frequency
10Hz-65kHz(+1/-3dB, analog in, pure mode)

Color
Black

Output level

4Vrms+1dB (THD=1%, analog in, analog pure)

 Separation

≥90dB (analog in, analog pure)

Max power consumption

 30W
Power supply
110-115V~/60Hz or AC 220-230V~/ 50Hz
G.W.
6.3 kg
N.W.
4.3 kg
Dimension

431x304x80mm(WxDxH)

Packaging dimension
560x392x165mm(WxDxH)

Frequently Asked Questions

We are receiving some questions regularly, so we thought we start a frequently asked questions:

Is there a UK release date?

The unit has been released, and is shipping. We are getting regular deliveries, and have supplied many units already.

Is there a UK price?

The initial price is £1,999 at this time. This may need to increase, but is the current launch price.

Is Dirac Active Room Treatment activated out of the box?

No, currently it is still being certified by Dirac. Sign up on the dirac website here, to find out when released.

Are there any additional charges for Dirac Active Room Treatment?

No, all licenses are included out of the box. No additional charges involved.

How many subwoofers does the unit support?

The AT600 is designed to support up to 3 subwoofers. One is an XLR and 2 are RCA.

What is the maximum speaker configuration?

The unit supports 16 channels. 3 of these are subwoofers, which means the maximum speaker configurations are 9.1.4 (with 3 subwoofers), and 7.1.6 (with 3 subwoofers).

Does the unit come with a microphone?

Yes, it does come with a microphone to run the internal calibration software. Dirac requires an external microphone. We recommend the miniDSP UMIK-1 which we sell here.
